Katway 3 in 1 Jewelry Engraving Machine,Air-free

IMPORTANT:

• Unplug the hot wind gun after 5 minutes of power failure.
• Keep good conditions of earthing devices is an important link to guarantee the safety of persons and equipment.
• Keep devices in good and dry environment.
• No additional air compressor is required-Airfree

TECHNICAL PARAMETERS

Product introduction

HH-R01 R-GRAVER is the first generation product of R series, including graver, micromotor and hot-wind , three in one.

This system offers you revolutionary powerful , eletreic graver. 110V/220V ， FULL USED.

Forget about the big & loud and expensive compressor. Save space , time and work more efficient with this one of a kind, new technology !

Includes : 6 quick change chuck , set of gravers & holder for handpiece , 1 graver handpiece, 1 micromotor handpiece , 1 hot wind handpiece，1 foot pedal.

NO COMPRESSOR NEEDED!!!

Metric: 6.0mm Imperial: 6.3mm

FUNCTION INTRODUCE

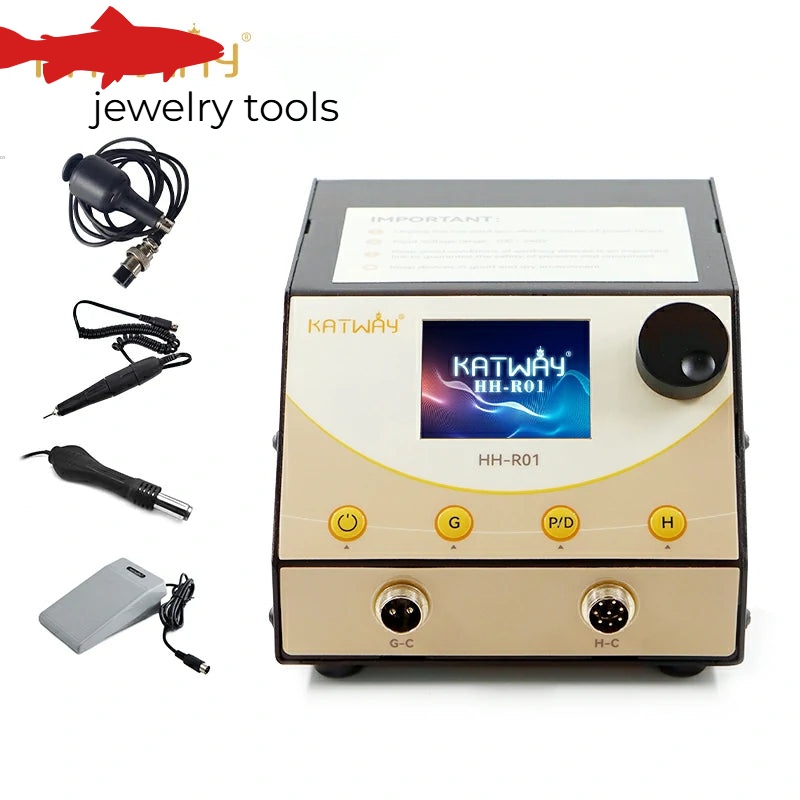

A – LIDUID CRYSTAL SCREEN

B – ON/OFF BUTTON

C – GRAVERBUTTON

D – MICROMOTOR BUTTON

E – HEAT BUTTON

F – ADJUSTING KNOB

G – GRAVER CONNECT FITTING

H – HOT WINDCONNECT FITTING

I – POWER ADAPTER

J – FOOT CONTROL CONNECT FITTING

K – MICROMOTOR CONNECT FITTING

L – HOT WIND HANDPIECE BASE

M – GRAVER HANDPIECE

N – MICROMOTOR HANDPIECE

O – HOT-WIND HANDPIECE

P – FOOT PEDAL

Q – QC TIPS

R – GRAVER SET

INSTALLATION GUIDE

Install the hot fan support

Access engraving handle

Access hot air handle

Access micromotor handle

Access foot pedal

Connect the power

OPERATION GUIDE

HH-R01 R-GRAVER special beyond the air compressor free feature.

The single handpiece can be quickly modified by switching out the pistion to allow for a wide variety of engraving styles from light bulino work to heavy engraving in hard metals like steel and titanium .

The engraving force can be adjusted by the plastic screw on the top of graver handpiece.

HH-R01 R-GRAVER includes three functions, GRAVER , MICROMOTOR, HEAT. THREE IN ONE.

GRAVER

Press G button each time (pic.1-C), the engraving inerface will jump to different engraving function,which are force by pedal , speed by pedal , trigger continuous, trigger oneshot.

When you enter a engraving interface , you press the adjusting knob（pic.1-F）, you can select the function item to be adjusted , roate the adjusting knob, then press foot pedal to work.

MICROMOTOR

Press P/D button each time (pic.1-D), the micromotor inerface will jump to different micromotor function,which are polishing and drilling .

When you enter a micromotor interface , you press the adjusting knob（pic.1-F）, you can select the function item to be adjusted , roate the adjusting knob, then press foot pedal to work.

HEAT

Press H button (pic.1-E), roate the adjusting knob, adjust temperture , then press foot pedal once, hot-wind handpice start working, press once again then stop.

SERVICE & REPAIR

Please Contact us（WhatsApp） for service and repair , if any needed .

WARRANTY

Each HH-R01 R-GRAVER carries a full 1-year warranty covering parts and labor. Please contact your local seller if any required.
